CT-C series hot air circulation oven
Description:CT-C series hot air circulation oven is equipped with low noise high temperature axial fan and automatic temperature control system. The whole circulation system is fully enclosed, which improves the thermal efficiency of the oven from 3-7% in the traditional drying room to the current 35 -45%, the highest thermal efficiency up to 50%. The success of the CT-C hot air circulation oven has made the hot air circulation oven in China reach the advanced level at home and abroad.
Tel:+8613801509290
Details

Product introduction
  CT-C series hot air circulation oven is  equipped with low noise and high temperature axial fan and automatic temperature control system. The whole circulation system is completely closed, so that the thermal efficiency of the oven is increased from 3-7% in the traditional drying room to the current 35- 45%, the highest thermal efficiency up to 50%. The success of the CT-C hot air circulation oven has made the hot air circulation oven in China reach the advanced level at home and abroad. Save a lot of energy for our country and improve the economic benefits of the company. In 1990, the State Administration of Pharmaceuticals released the industry standard, and the uniform model is RXH.


◎ The heating source is steam, electricity, far infrared, and electric vapor for users' choices.
 ◎Using temperature: steam heating 50-140 o C, maximum 150 o C;
 ◎ electricity, far infrared temperature 50-350 o C;
 ◎Auto-control system and computer control system are available for users to choose from.
 ◎Common steam pressure is 0.02-0.8Mpa(0.2~8kg/m 2 ).
 ◎Equipped with electric heating, calculate 15KW according to type I, practical 5-8kw/h;
 ◎ Special requirements when ordering instructions;
 ◎ non-standard oven price negotiable;
 ◎ use the temperature is greater than 140 o C or less than 60 o C, to indicate when ordering;

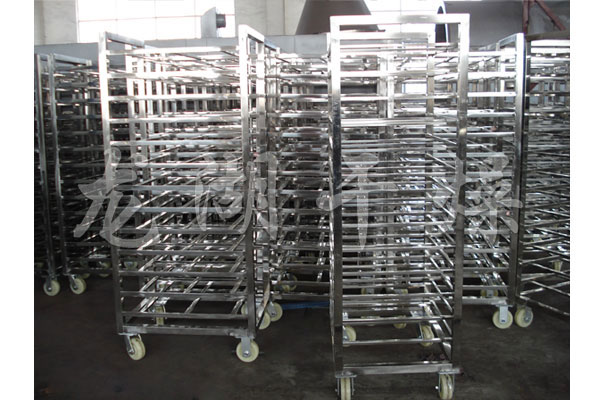

 ◎ factory factory car baking, baking tray size uniform, interchangeable;
 ◎ baking plate size: 460 × 640 × 45 (mm).


   Performance characteristics

  Most hot air circulation in the box, high thermal efficiency, save energy. The use of forced ventilation, the box is equipped with adjustable split air plate, the material is evenly dry, the heat source can be steam, hot water, electricity, far infrared, and a wide choice. The whole machine is low in noise and balanced in operation. Temperature control, easy installation and maintenance. With a wide range of application, it can dry various materials and is a universal drying equipment .


Adaptable materials are
  suitable for heat curing, drying and dehydration of materials and products in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese Herbal Medicine, extracts, powders, granules, granules, water pills, bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking and so on.


 Technical specifications

Industry standard modelTechnical Specifications
Model Specifications
Each drying amount
(kg)
With power
(kw)
Consumption of steam
(kg/h)
Radiating area
(m 2 )
Air volume
(m3/h)
Temperature difference between upper and lower
( o C)
With baking plateDimensions
Width × Depth × Height
Supporting carequipment weight
RXH-14-BCT-I1201.120202800±2482430×1200×237521200
RXH-27-BCT-II2402.240405200±2962430×2200×243341500
RXH-41-BCT-III360360808000±21443430×2200×262062000
RXH-54-BCT-IV4804801009800±21924460×2200×262082300
RXH-5-CCT-CO250.45553450±2161130×1100×17500800
RXH-7-CCT-C-IA500.4510103450±2twenty four1400×1200×200011,000
RXH-14-CCT-C-I1200.4518203450±2482300×1200×200021500
RXH-27-CCT-C-II2400.936406900±2962300×2200×200041800
RXH-27A-CCT-C-IIA2400.936406900±2964460×1200×229041800
RXH-41-CCT-C-III3601.35548010350±21443430×2200×200062200
RXH-42A-CCT-C-IIIA3601.35548010350±21442300×3200×200062200
RXH-54-CCT-C-IV4801.87210013800±21924460×2200×229082800
RXH-25-AHigh-efficiency high-temperature far-infrared sterilization oven power matching according to temperature requirements1200×1000×160011200


Accessories Series


Hot air circulation oven accessories
